Barreto Trencher using 1.654″ pitch chain

Digging Teeth

Carbide Cutter (Bullet Bit Type)

Carbide Cutter (Shark Tooth Type)

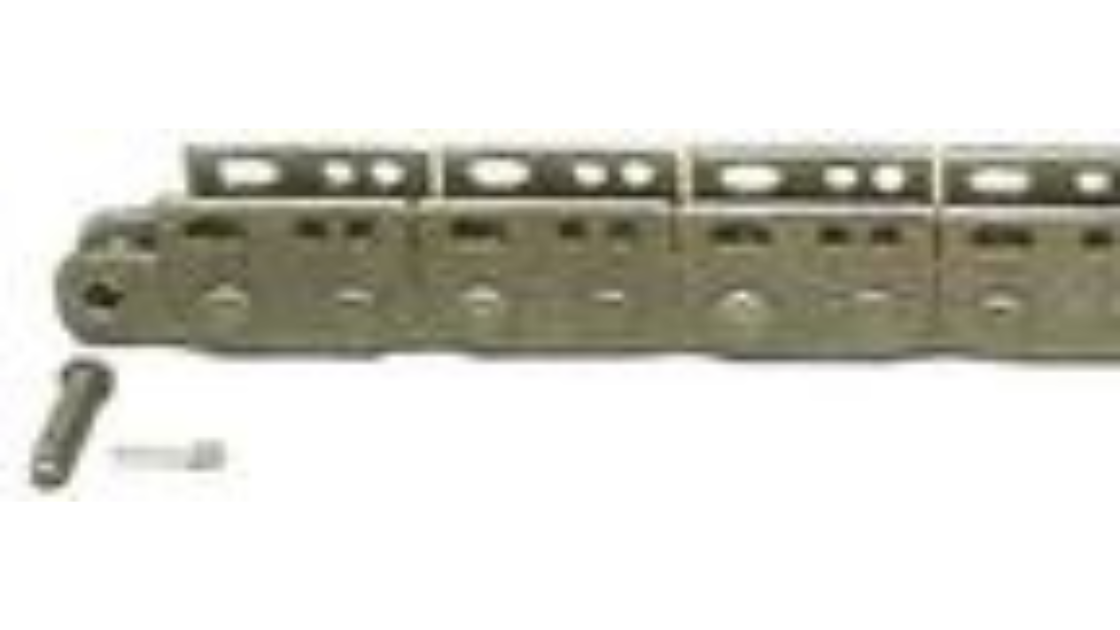

Double Standard Chain

Standard Chain

1.654″ PITCH BARE DIGGING CHAIN & DIGGING CHAIN ASSEMBLIES

(Pitch is the center-to-center measurement of the chain pins)

(Number of links on a chain is the number of chain pins divided by 2)

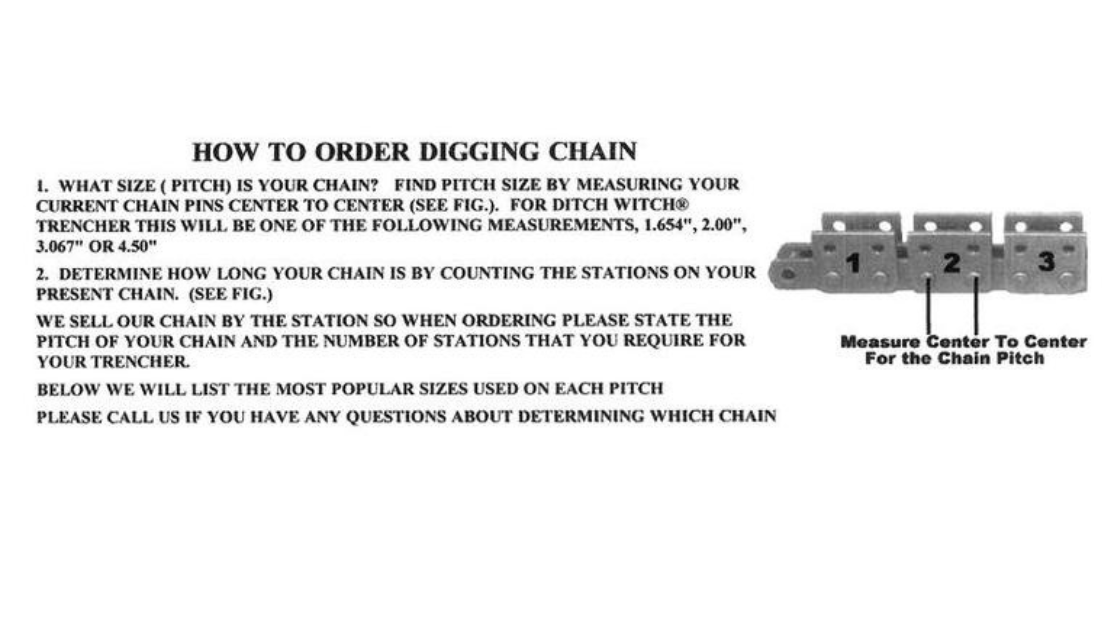

how to order

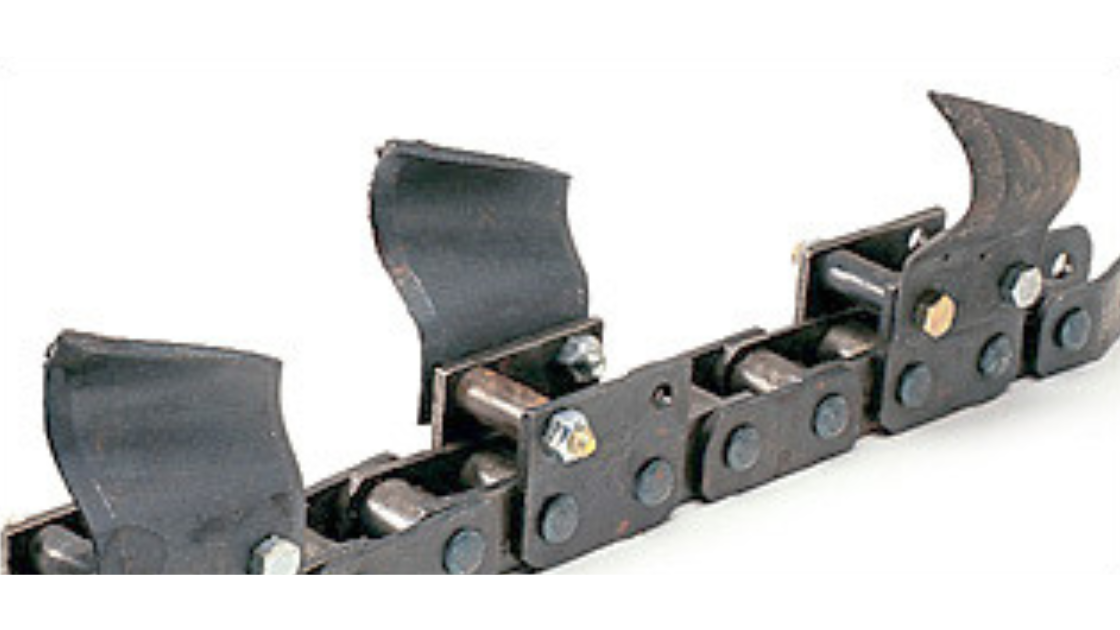

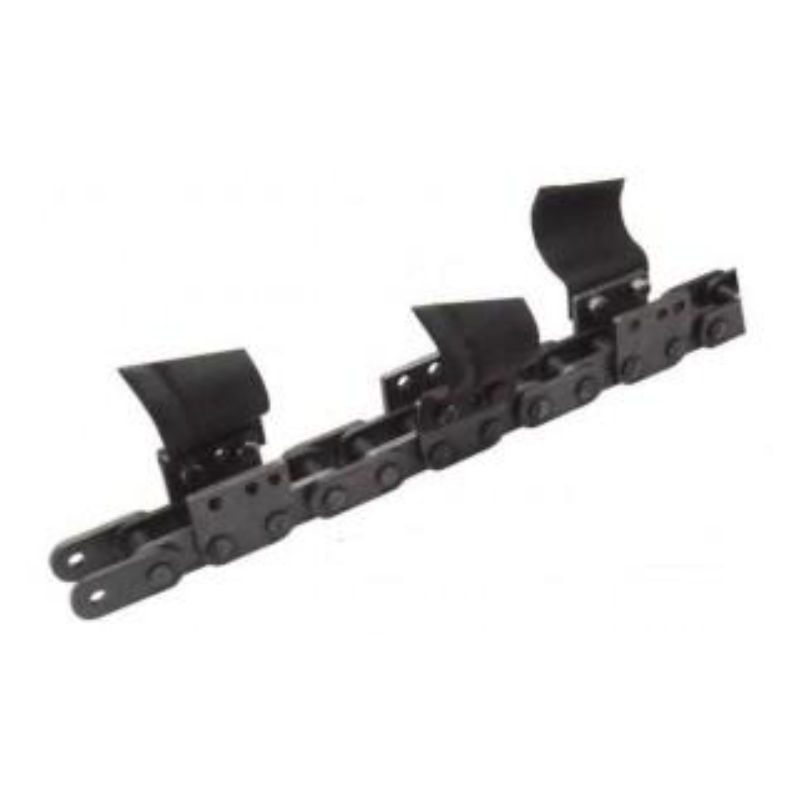

STANDARD CHAIN – 1.654″ PITCH CUP TOOTH CHAIN   4″ CUT

STANDARD CHAIN 1.654
LOWEST PRICED Standard Trencher Chain
is use in the easiest of digging conditions, such as:
SAND, SANDY LOAM, LOOSE SHALE, LOOSE SOIL AND STICKY CLAY.

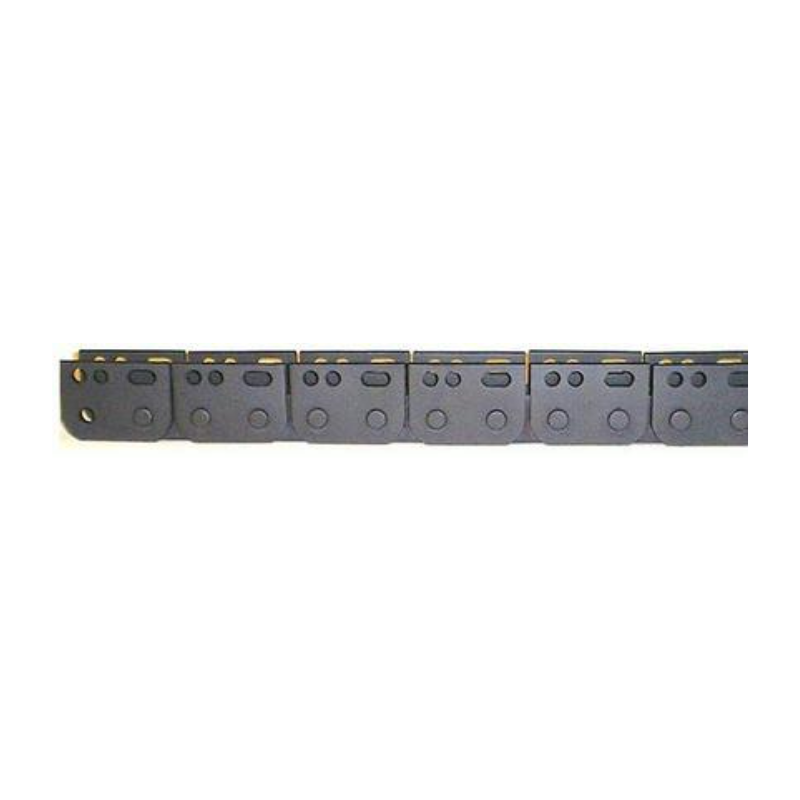

​1.654″ DOUBLE STANDARD PITCH BARE CHAIN

DOUBLE STANDARD PITCH BARE CHAIN

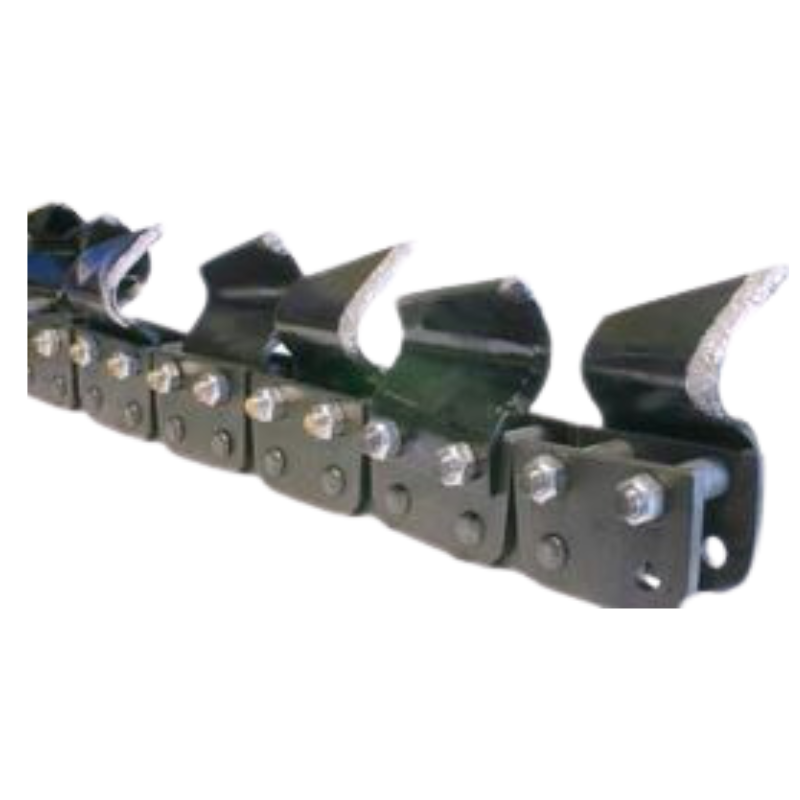

1.654″ PITCH DOUBLE STANDARD CUP TOOTH CHAIN   4″ CUT

PITCH DOUBLE STANDARD CUP TOOTH CHAIN
LOW-COST DOUBLE STANDARD TRECHER CHAIN.
Best for trenching sand, sandy loam, loose shale, loose soil, caliche, and clay.

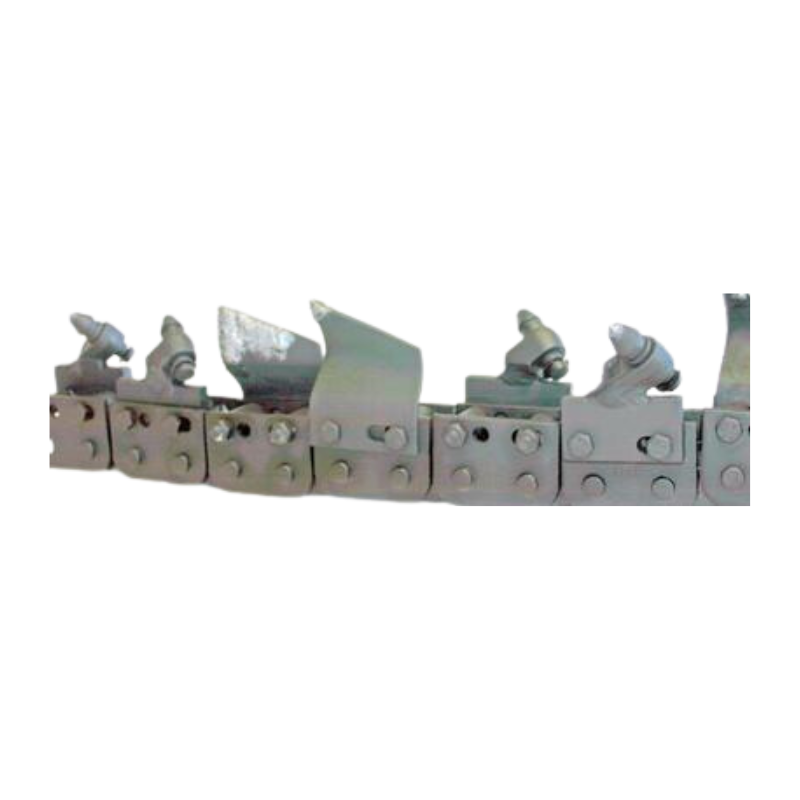

1.654″ PITCH 50/50 COMBO CHAIN 4″ CUT

PITCH 5050 COMBO CHAIN 4 CUT
This 50/50 chain configuration allows for trenching in almost any type of ground.
The CARBIDE TIP replaceable BULLET BITS are bolted to the chain and used to break up the ground. The cup teeth follow to clean the trench.  This 50/50 double standard chain will give the highest production in FROZEN GROUND, HIGHLY COMPACTED SOILS AND ROCK.

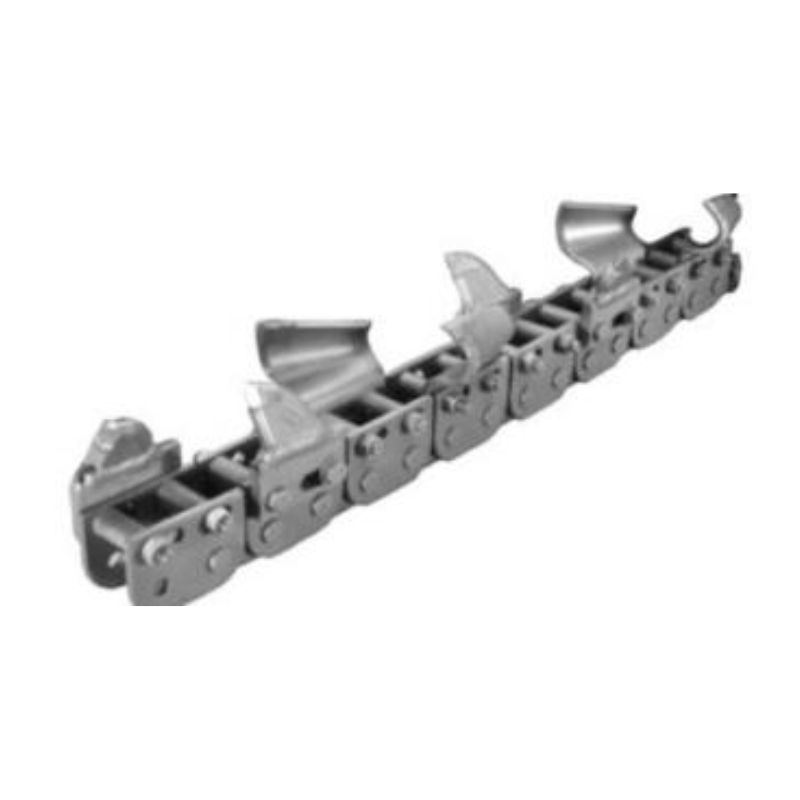

1.654″ PITCH 50/50 COMBO SHARK CHAIN  4″CUT

1.654 PITCH 5050 COMBO SHARK CHAIN 4 CUT
This 50/50 chain configuration allows for trenching in almost any type of ground.
THE NON-REPLACEABLE SHARK TOOTH WILL OUTLAST THE CHAIN.
The cup teeth will clean the trench. This is a double standard chain Used on FROZEN GROUND, HIGHLY COMPACTED SOILS AND ROCK.

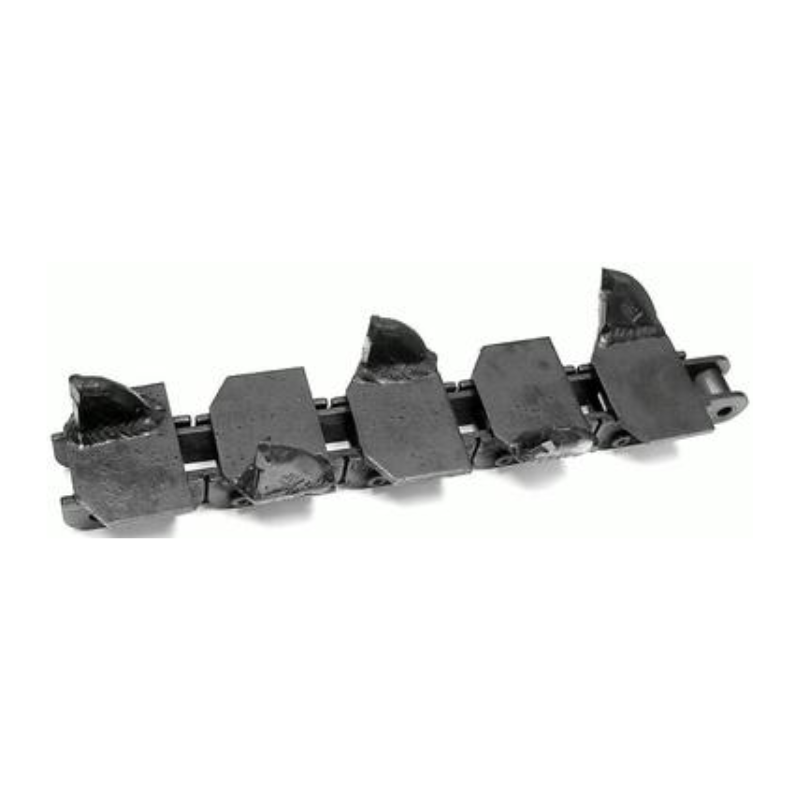

1.654″ PITCH WELDED LOW PROFILE SHARK CHAIN  4″ CUT

1.654 PITCH WELDED LOW PROFILE SHARK CHAIN 4 CUT
The Welded Shark Tooth Chain is a MAINTENANCE FREE low profile chain assembly.
The CARBIDE TIPPED shark tooth will OUTLAST THE CHAIN. Tension Adjustment is the only maintenance required.  A great chain for digging HARD ROCK, CALICHE, CORAL, AND LIMESTONE.  THIS IS A GOOD CHAIN FOR TREE ROOTS.

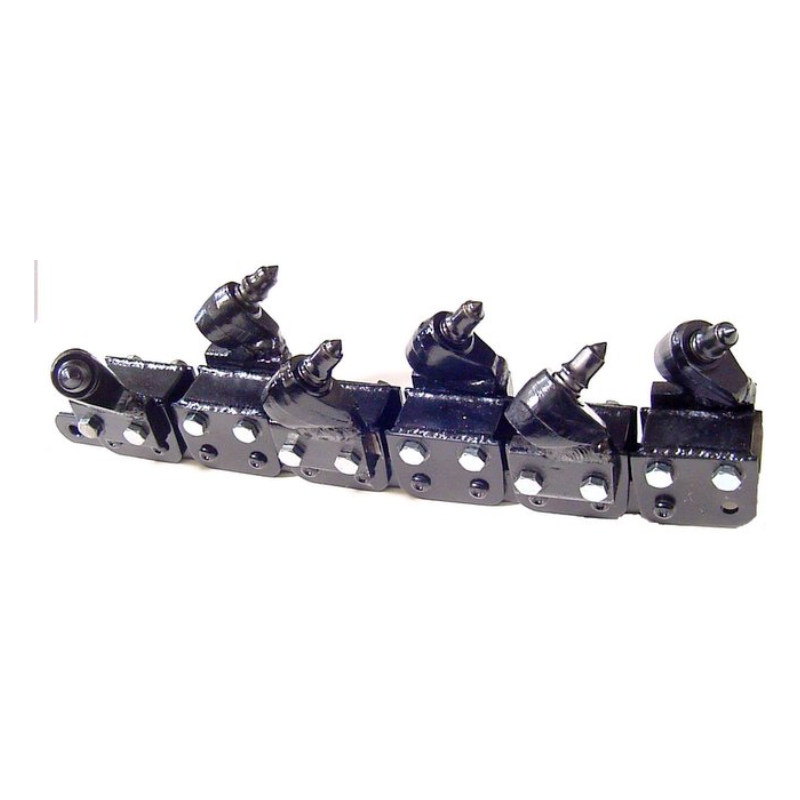

​1.654″ PITCH ALL BOLT-ON BULLET BIT CHAIN 4″ CUT

1.654 PITCH ALL BOLT ON BULLET BIT CHAIN 4 CUT
The Bolt-On Rock and Frost Chain are used on HARD ROCKY CONDITIONS AND FROZEN GROUND.
This double standard chain uses REPLACABLE BULLET BITS to PICK AND FRACTURE ROCK AND HARD GROUND.
