3.067" Pitch Specialty Chain for Larger Ride-On Trenchers
It has a 16″ wide cut with is a specialty chain made just for the customer. The cutters are the bullet 765’s side mounts and double hard faced cup teeth. This is a 860lbs. Chain. It fits your larger ride on trenchers, anything in the category of 3.067″ pitch
3.110" Pitch Heavy Duty Chain for Extreme Cutting Applications
That is the heavy duty 3.067″ pitch. This is our toughest chain. It is called the H-Plate and can cut thru pure limestone, solid rock, concrete, asphalt, and anything similar. This chain is made per customer. This chain is A 12″ cut. Made with 765 bullets and Pockets are welded on the brackets for an extreme cutting angle. This chain has no nuts and bolts making it a solid beast.
3.067″ PITCH: BARE DIGGING CHAIN & DIGGING CHAIN ASSEMBLIES
3.067″ CUP TOOTH CHAIN 6″ CUT
Low-cost trencher chain
Best for trenching sand, sandy loam, loose shale, loose soil, caliche and clay.
3.067″ 50/50 COMBO CHAIN 6″ CUT
(CARBIDE TIPPED BULLET BITS & CUP TOOTH)
This 50/50 chain configuration allows for trenching in almost any type of ground. The carbide tipped replaceable bullet bits are bolted to the chain and used to break up the ground. The cup teeth follow to clean the trench. Use on loose dirt, medium and hard rocky soil.
3.067″ PITCH 50/50 COMBO CHAIN 6″ CUT
(CARBIDE TIPPED SHARK TEETH & CUP TOOTH)
This 50/50 chain configuration allows for trenching in almost any type of ground. The non-replaceable shark tooth will outlast the chain. The cup teeth follow the shark tooth to clean the trench. Use on loose dirt, medium and hard rocky soil.
3.067″ SHARK TOOTH WELDED CHAIN 6″ CUT
The welded shark tooth chain is a maintenance free low profile chain assembly. The carbide tipped shark tooth will outlast the chain. Tension adjustment is the only maintenance required. A great chain for digging hard rock, caliche, coral, and limestone.
3.067″ ALL ROCK & FROST CHAIN 6″ CUT
(CARBIDE TIPPED BULLET BITS)
The bolt-on rock and frost chain are used on hard rocky conditions and frozen ground. This chain uses replaceable carbide tipped bullet bits to pick and fracture hard rock and frozen ground.

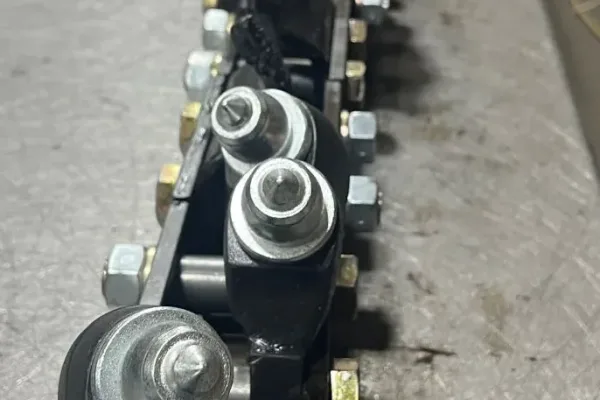

3.067″ ALL BULLET H-PLATE CHAIN 6″ CUT
Do you need a chain for trenching in extreme conditions? Use this chain in hard rocky conditions, frozen ground, asphalt and concrete. The welded h-plate chain gives you the best bit penetration angle plus great trench clean out. This assembly has heavy-duty, heat-treated pockets and rock bits with pocket protectors.
